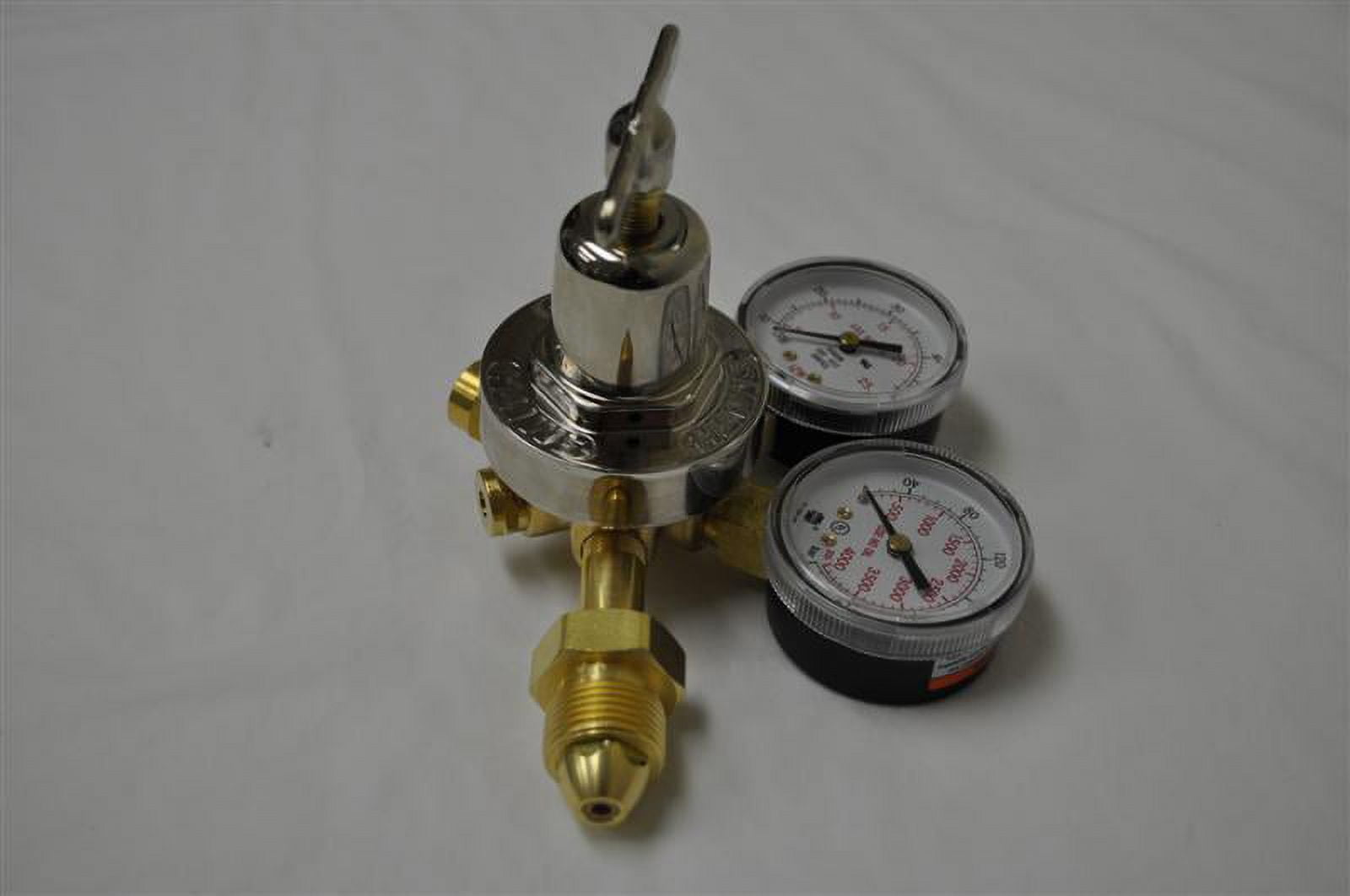

Miller Smith 31-50-580 Argon CO2 Mix Single Stage Flow Gauge Regulator, CGA 580

Flow Gauge Regulator, Compatible Gas Type Argon, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.965 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 50 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 50 scfh, Carbon Dioxide Flow Rate (Maximum) 50 scfh, Number of Stages Single Stage

• Carbon Dioxide Flow Rate (Maximum):50 scfh
• CGA Number:CGA 580
• Compatible Gas Type:Argon
• Duty Rating:Heavy Duty
• Features:Three-Year Warranty, Self-Resetting Pressure Relief Valve
• Flow Rate (Maximum):50 scfh (Argon) ; 50 scfh (Carbon Dioxide)
• Flowmeter Series:30
• Gas Service:Argon
• Gauge Diameter:2 in
• Gauge Size:2 in
• Gauges Delivery Pressure:50 cfh
• Hose Fitting Size:B (Inert)
• Includes:Nickel-Plated Bonnet, Self Reseting Safety Relief Valve, Sure Seat(TM) Filtered Seat
• Inlet Connection Gender:Female
• Inlet Connection Size:0.965"-14
• Inlet Connection Type:NGO
• Inlet Connection:CGA 580
• Inlet Pressure (Maximum):3,000 psig
• Inlet Thread Direction:Right Hand
• Max. Inlet Pressure:3,500 psi
• Maximum Flow Rate:50 scfh (Argon), 50 scfh (Carbon Dioxide)
• Maximum Gauge Inlet Pressure:3,000 psig
• Maximum Inlet Pressure:3,000 psig
• Product Type:Flow Gauge Regulator
• Regulator Capacity:Medium Duty
• Regulator Supply Type:Cylinder
• Series:30
• Stages:Single Stage
• Standards:UL Listed
• Supply Pressure Gauge:4,000 psi
