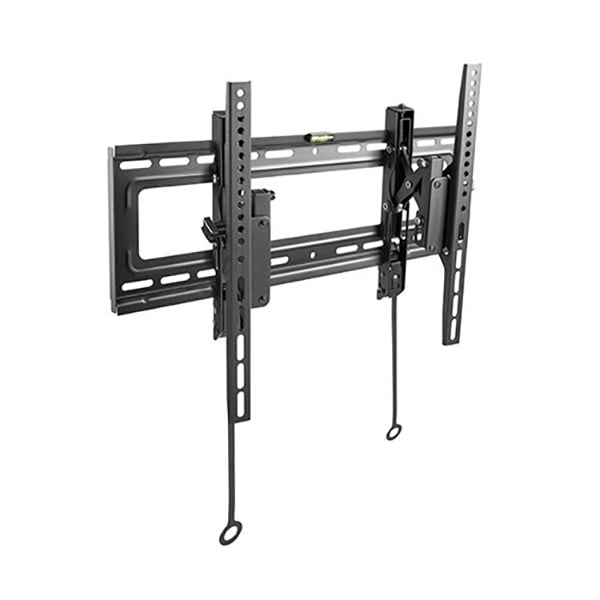

Premium Micro-Adjust Tilt TV Wall Mount with Advanced Extension: 37" - 80" Screens
Product details
| Management number | 230611379 | Release Date | 2026/06/18 | List Price | $21.09 | Model Number | 230611379 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Premium Micro-Adjust Tilt TV Wall Mount with Advanced Extension: 37" - 80" Screens With the advanced extendable mechanism, this tilt TV wall mount allows enough space for maintenance or wiring. The micro adjustment feature makes getting the TV perfectly level a breeze. It's also possible to swivel the TV for an ideal angle by extending one arm out while keeping the other still.
- Compatible with most TVs from 37" to 80"

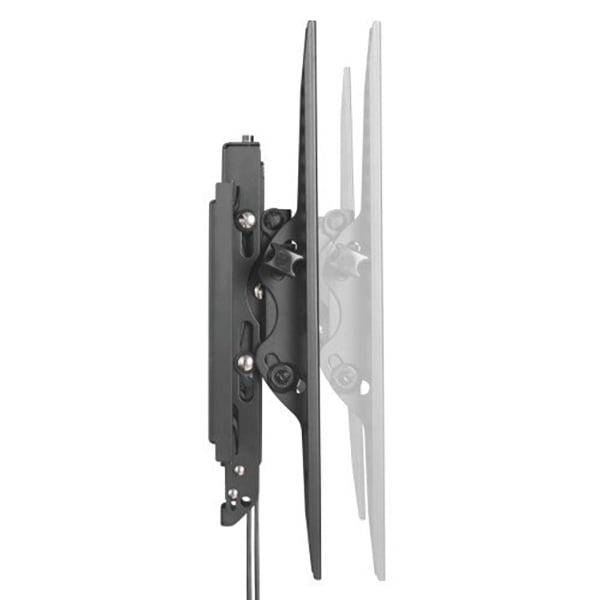

- Tilt: -12 to +5 degree

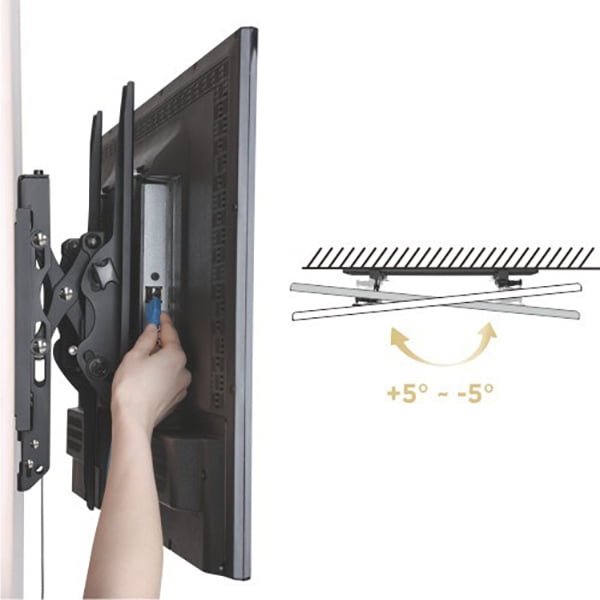

- Swivel: -5 to +5 degree
- Load Capacity: 154 lbs.
- Material: Steel

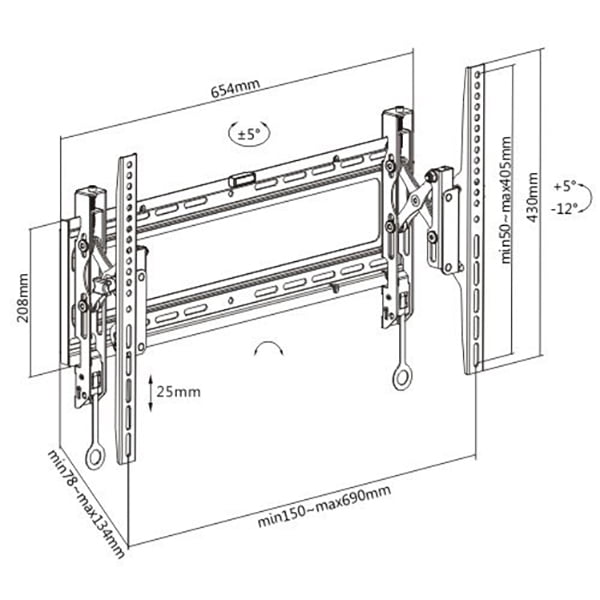

- TV to Wall: 3.1" to 5.3" (fully extended)
- VESA: 200x200/300x300/400x200/400x400/600x400mm

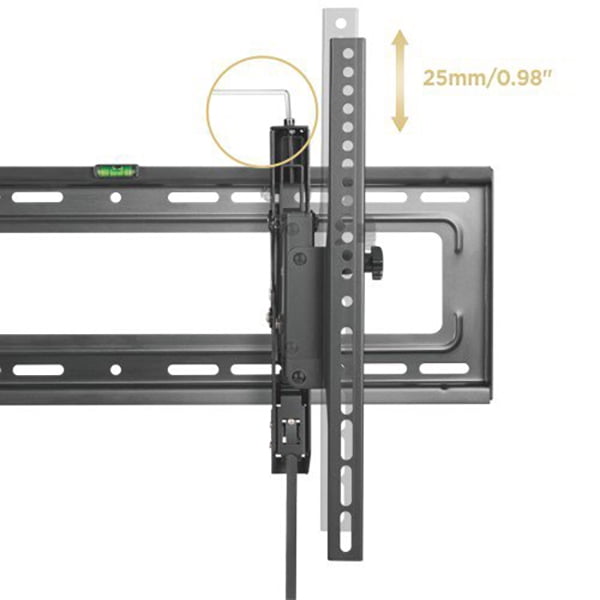

- Micro Level Adjustment: +/- 1 inch
- Advanced Extension allows you to angle the tv, and allows for easier maintenance and wiring

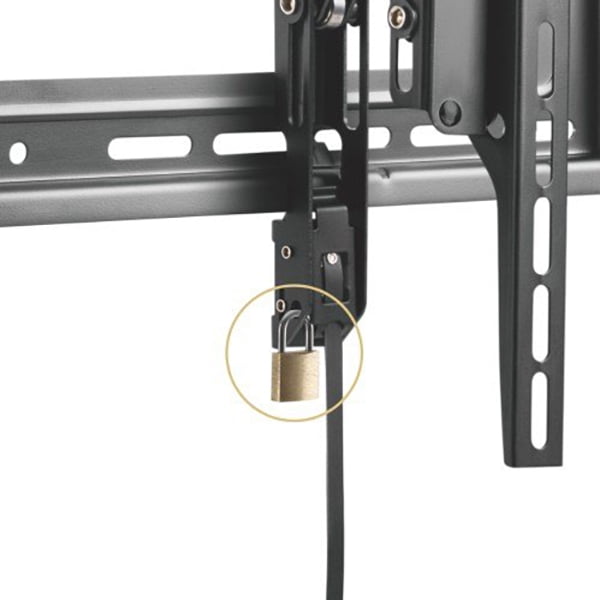

- Anti-Theft Locking Hole: for additional security preventing any unwanted removal (padlock not included)
- Compatible with Curved TVs
- Open Architecture: provides increased ventilation and easier access to wires

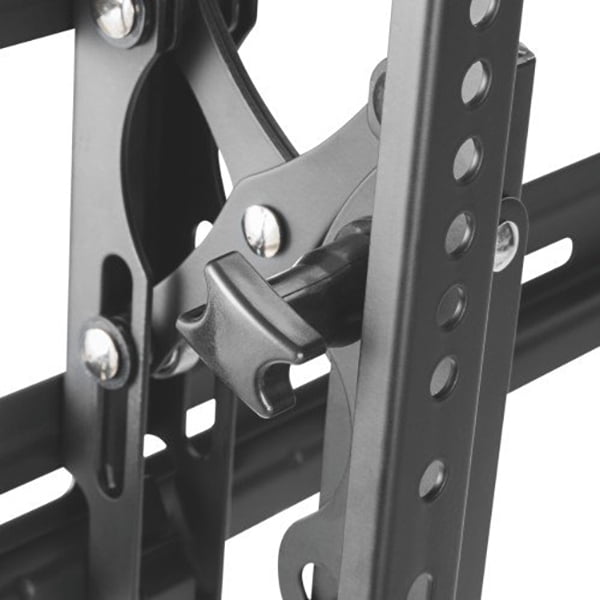

- Easy-Grip Knobs: for quick tilt and lock
- Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
- Integrated Bubble Level: assures alignment
- Mounting Hardware Included
| Screen size | 80 in |
|---|---|
| Max load | 154 lb |
| Mount pattern | 200 x 200, 200 x 300, 300 x 200, 200 x 400, 300 x 300, 400 x 200, 300 x 400, 400 x 400, 200 x 600, 600 x 400 |
| Mount type | Wall Mount |
| Tv & monitor mount type | TV Tilt Mount |
| Tilt angle | 17 º |
| Minimum screen size | 37 in |
| Features | Lockable Position |
| Material | Steel |
| Brand | Brateck |
| Color | Black |
| Finish | Matte |
| Weight | 11.2 lb |
| Maximum depth | 5.3 in |
| Height | 8.6 in |
| Accessories | Installation Hardware |
| Has written warranty | No |
